debids data XML Datasource Schema Documentation

This document describes the XML datasource format of debids datas' Diagnostician.

Naming Convention: debids datas' XML datasource files are using the registered file extension: '.DDXDS'

So if you would like to open the Diagnostician while doubleclicking on a given datasource file (e.g. 'demo.ddxds')
please take care that your datafiles use the file extension '.ddxds' !

To keep things simple and this description as small as possible, only those elements are described, that are neccessary to import the following measurement values:

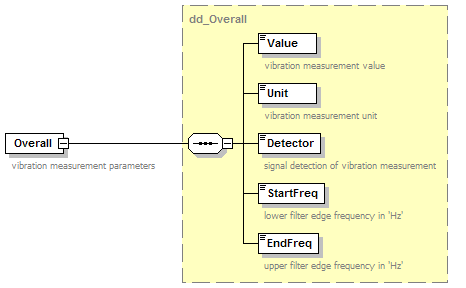

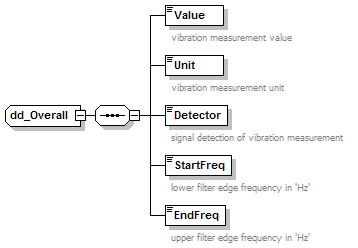

Overall Value plus limits plus additional setup information

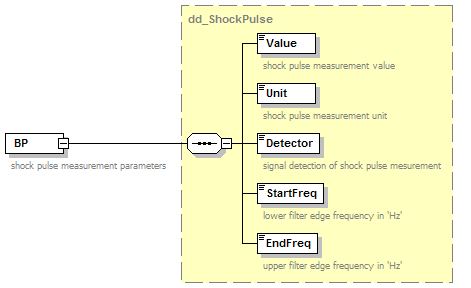

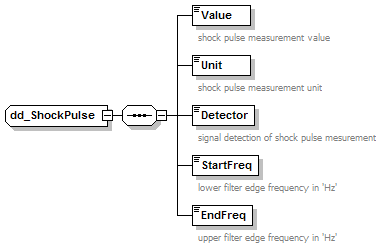

Shock Pulse Value plus limits plus additional setup information
Bearcon Value plus limits plus additional setup information

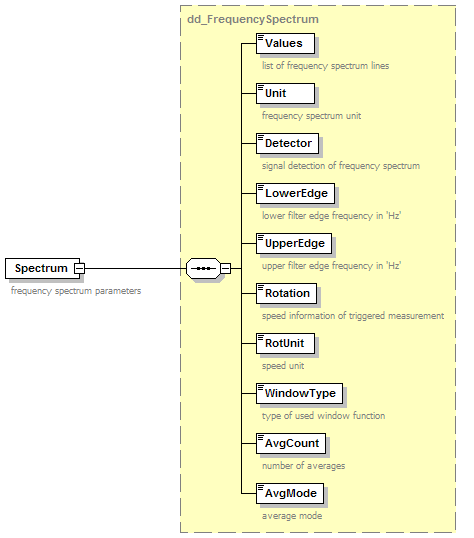

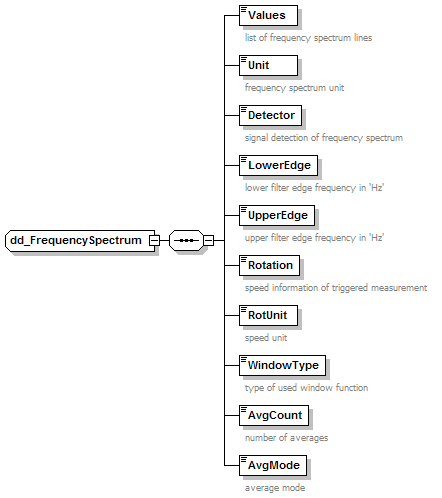

Frequency Spectrum plus additional setup information
Bearcon Signature Spectrum plus additional setup information
Envelope Spectrum plus additional setup information

In case of questions, please contact support@debids-data.de

schema location:	S:\dd_V1.5\_run\data\ddxds.xsd
attribute form default:
element form default:	qualified

Elements	Complex types
diagnostician-xml-datasource	dd_Bearcon
	dd_BearconSignatureSpectrum
	dd_DiagnosisConfiguration
	dd_EnvelopeSpectrum
	dd_FrequencySpectrum
	dd_Item
	dd_Limit
	dd_LimitSet
	dd_Marker
	dd_MarkerSet
	dd_Overall
	dd_ShockPulse

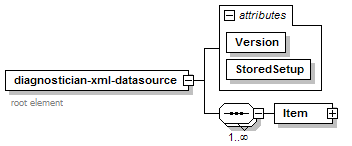

element diagnostician-xml-datasource

Name	Type	Use	Default	Fixed	Annotation
Version	xs:string	required		1.1
StoredSetup	xs:string	required		True

documentation	root element
documentation

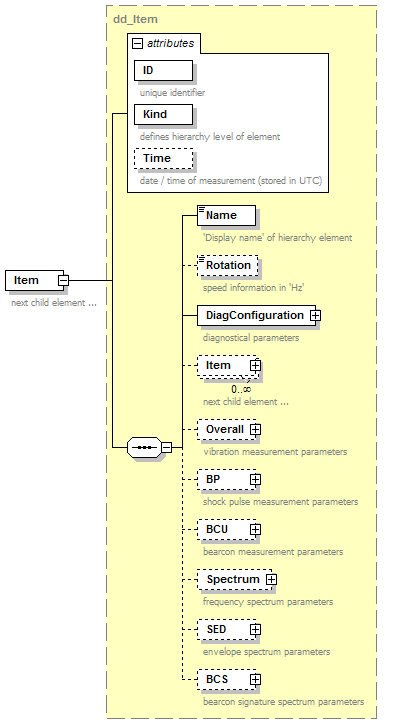

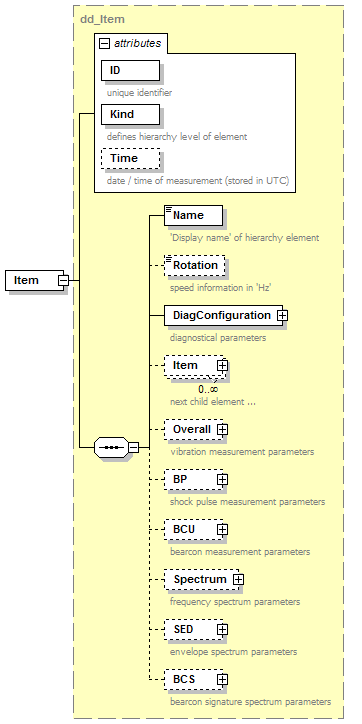

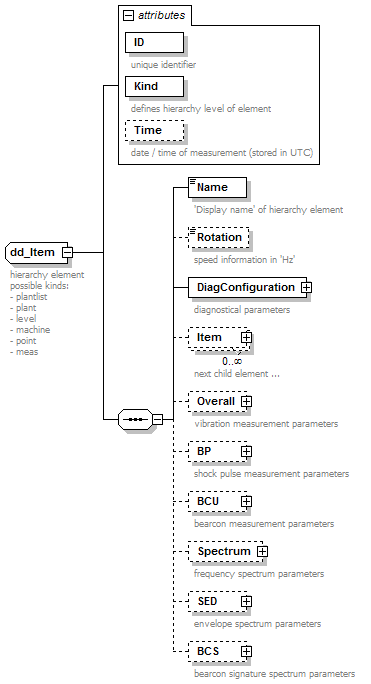

element diagnostician-xml-datasource/Item

isRef	0
content	complex

Name Rotation DiagConfiguration Item Overall BP BCU Spectrum SED BCS

unique identifier


Each element MUST have a unique identifier.
This identifier can have any format that is able to be stored in a string.
The only important thing is, that it is unique (at least inside your XML data file), better into your whole system.

defines hierarchy level of element


Enumeration Description:

»plantlist«
   The 'plantlist' element is able to hold a list of 'plant' items.
   Valid parent items:	has to be placed as root element
   Valid child items:	'plant'

»plant«
   The 'plant' element is able to hold a hierachy of levels and machines.
   Valid parent items:	'plantlist' or canbe placed directly as root element
   Valid child items:	'level' and 'machine'

»level«
   The 'level' element gives you the possibility to devide your hierarchy
   into additional levels.
   Valid parent items:	'plant' and 'level'
   Valid child items:	'level'  and 'machine'

»machine«
   The 'machine' element holds all diagnostic relevant data
   Valid parent items:	'plant', 'level' or directly as root element
   Valid child items:	'point'

»point«
   The 'point' element holds a list of measurements.
   Valid parent items:	'machine'
   Valid child items:	'measurement'

»measurement«
   The 'measurement' element contains none, one or more measurements.
   Each mesurement is a collection of several measurement tasks that are
   belonging together (e.g. due to the fact that they are all measured at
   (nearly) the same time.

   Each measurement item can contain the following measurements:
      - One Overall measurement
      - One Shockpulse measurement OR one Bearcon measurement
      - One Frequency spectrum
      - One Envelope spectrum OR one Bearcon Signature spectrum

   Valid parent items:	'point'
   Valid child items:	there are no further child elements available (at the moment)

ATTENTION:
   To keep things simple, neither parent/child relationsships
   nor measurement consistency will be checked by the XSD file!

date / time of measurement (stored in UTC)

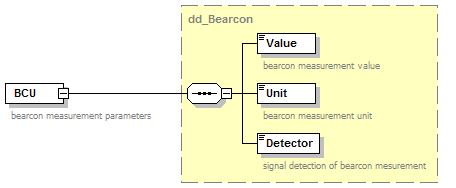

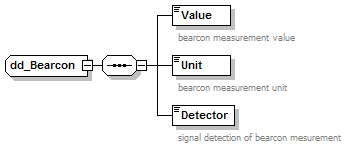

complexType dd_Bearcon

Value Unit Detector

element dd_Bearcon/Value

isRef	0
content	simple

bearcon measurement value

element dd_Bearcon/Unit

restriction of xs:string

isRef	0
content	simple

bearcon measurement unit

element dd_Bearcon/Detector

restriction of xs:string

isRef	0
content	simple

signal detection of bearcon mesurement

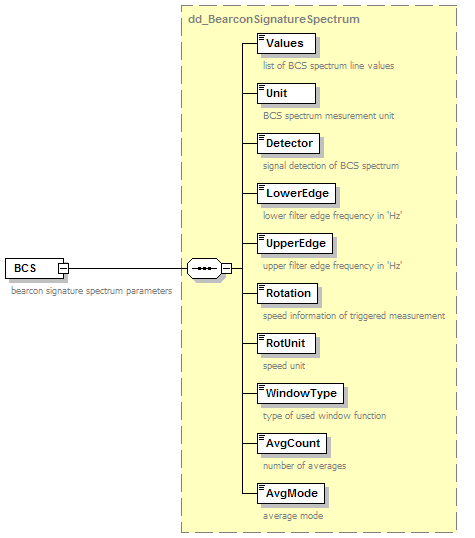

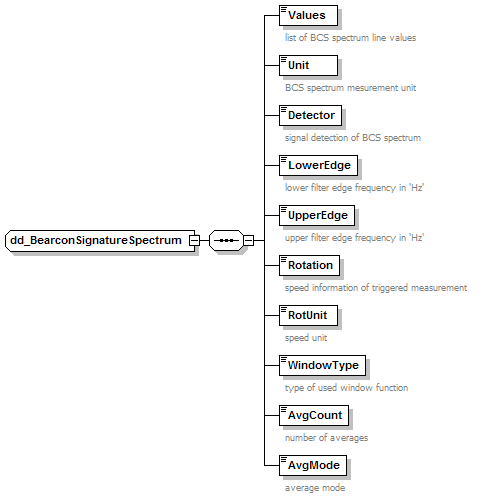

complexType dd_BearconSignatureSpectrum

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

element dd_BearconSignatureSpectrum/Values

isRef	0
content	simple

list of BCS spectrum line values

This string element contains a comma separated list of double values.
(e.g. 0.0041,0.0229,0.0444,...)
Each value represents the amplitude value of a single spectrum line.

There is no check if there are sufficient values available.
If you put in 4218 values then you will get out a 4218 lines spectrum!

element dd_BearconSignatureSpectrum/Unit

restriction of xs:string

isRef	0
content	simple

documentation	BCS spectrum mesurement unit
documentation	The only allowed unit for bearcon signature spectrums is 'BCU'

element dd_BearconSignatureSpectrum/Detector

restriction of xs:string

isRef	0
content	simple

enumeration	pk
enumeration	pk-pk
enumeration	rms

signal detection of BCS spectrum

element dd_BearconSignatureSpectrum/LowerEdge

restriction of xs:double

isRef	0
content	simple

enumeration	1
enumeration	2
enumeration	5
enumeration	10

lower filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'LowerFilterEdge'

element dd_BearconSignatureSpectrum/UpperEdge

restriction of xs:double

isRef	0
content	simple

enumeration	20
enumeration	50
enumeration	100
enumeration	200
enumeration	500
enumeration	1000
enumeration	2000

upper filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'UpperFilterEdge'

element dd_BearconSignatureSpectrum/Rotation

isRef	0
content	simple

documentation	speed information of triggered measurement
documentation	If there is no speed information available, just store '0'.

element dd_BearconSignatureSpectrum/RotUnit

restriction of xs:string

isRef	0
content	simple

enumeration	Hz
enumeration	upm
enumeration	cpm
enumeration	1/min

documentation	speed unit
documentation	If there is no speed information available just store 'Hz'.

element dd_BearconSignatureSpectrum/WindowType

restriction of xs:string

isRef	0
content	simple

enumeration	Flat
enumeration	Hanning
enumeration	Uniform

documentation	type of used window function
documentation	This element is not used by the diagnosis engine (at the moment) and therefore has only informational character. (e.g. for reports, ...)

element dd_BearconSignatureSpectrum/AvgCount

restriction of xs:string

isRef	0
content	simple

enumeration	4
enumeration	16
enumeration	64
enumeration	Exp
enumeration	PeakHold

number of averages

'4, 16, 64' - averages
'Exp' - exponential averaging
'PeakHold' - Peak-Hold averaging

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

element dd_BearconSignatureSpectrum/AvgMode

restriction of xs:string

isRef	0
content	simple

enumeration	off
enumeration	FreqDomain
enumeration	TimeDomain

average mode

'off' - averaging inactive
'FreqDomain' - averaging based on frequency domain
'TimeDomain' - averaging based on time domain

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

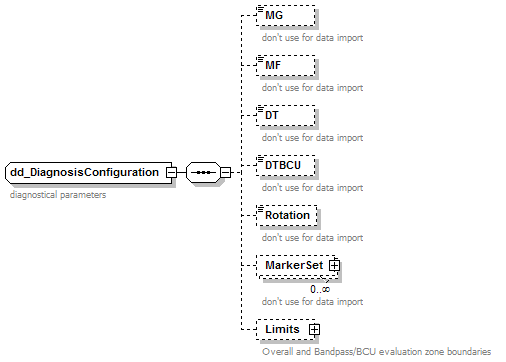

complexType dd_DiagnosisConfiguration

MG MF DT DTBCU Rotation MarkerSet Limits

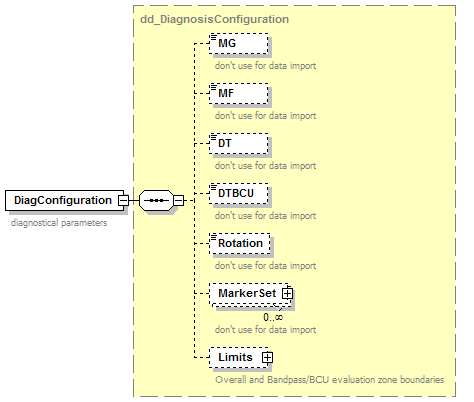

dd_Item/DiagConfiguration

diagnostical parameters

element dd_DiagnosisConfiguration/MG

restriction of xs:integer

isRef	0
content	simple

enumeration	0
enumeration	1
enumeration	2
enumeration	3
enumeration	4

don't use for data import

element dd_DiagnosisConfiguration/MF

restriction of xs:string

isRef	0
content	simple

don't use for data import

element dd_DiagnosisConfiguration/DT

restriction of xs:string

isRef	0
content	simple

enumeration	ISO10816
enumeration	NONE

don't use for data import

element dd_DiagnosisConfiguration/DTBCU

restriction of xs:string

isRef	0
content	simple

enumeration	NONE
enumeration	USER

don't use for data import

element dd_DiagnosisConfiguration/Rotation

isRef	0
content	simple

don't use for data import

element dd_DiagnosisConfiguration/MarkerSet

isRef	0
content	complex

Name	Type	Use	Default	Fixed	Annotation
type		required
Name	xs:string
Manufactor	xs:string

don't use for data import

element dd_DiagnosisConfiguration/Limits

isRef	0
content	complex

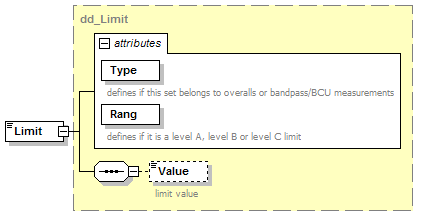

Overall and Bandpass/BCU evaluation zone boundaries


If you would like to check your overall measurements or bandpass/BCU measurements
against some limits, then here is the right place to define the individual
evaluation zone boundaries.

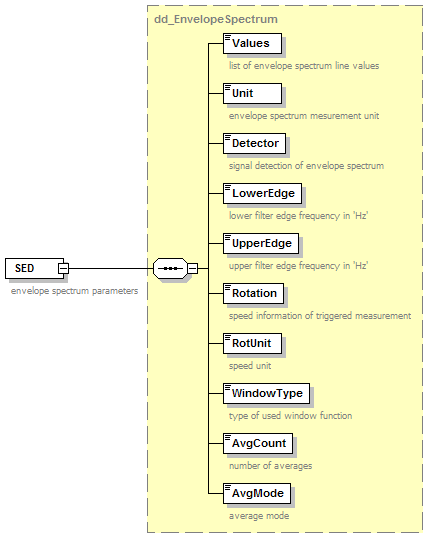

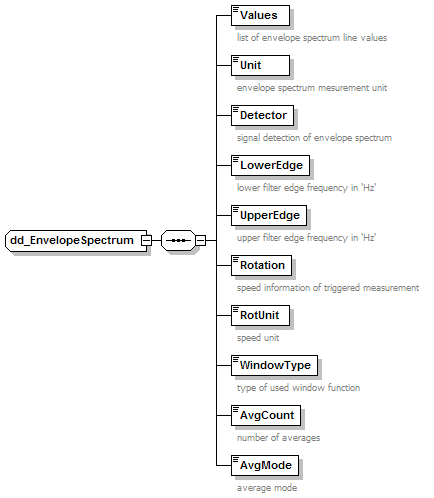

complexType dd_EnvelopeSpectrum

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

element dd_EnvelopeSpectrum/Values

isRef	0
content	simple

list of envelope spectrum line values

This string element contains a comma separated list of double values.
(e.g. 0.0041,0.0229,0.0444,...)
Each value represents the amplitude value of a single spectrum line.

There is no check if there are sufficient values available.
If you put in 4218 values then you will get out a 4218 lines spectrum!

element dd_EnvelopeSpectrum/Unit

restriction of xs:string

isRef	0
content	simple

enumeration	g
enumeration	m/s2
enumeration	m/s²

envelope spectrum mesurement unit

element dd_EnvelopeSpectrum/Detector

restriction of xs:string

isRef	0
content	simple

enumeration	pk
enumeration	pk-pk
enumeration	rms

signal detection of envelope spectrum

element dd_EnvelopeSpectrum/LowerEdge

restriction of xs:double

isRef	0
content	simple

enumeration	630
enumeration	800
enumeration	1000
enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000
enumeration	12500
enumeration	16000

lower filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'LowerFilterEdge'

element dd_EnvelopeSpectrum/UpperEdge

restriction of xs:double

isRef	0
content	simple

enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000
enumeration	12500
enumeration	16000
enumeration	20000

upper filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'UpperFilterEdge'

element dd_EnvelopeSpectrum/Rotation

isRef	0
content	simple

documentation	speed information of triggered measurement
documentation	If there is no speed information available, just store '0'.

element dd_EnvelopeSpectrum/RotUnit

restriction of xs:string

isRef	0
content	simple

enumeration	Hz
enumeration	upm
enumeration	cpm
enumeration	1/min

documentation	speed unit
documentation	If there is no speed information available just store 'Hz'.

element dd_EnvelopeSpectrum/WindowType

restriction of xs:string

isRef	0
content	simple

enumeration	Flat
enumeration	Hanning
enumeration	Uniform

documentation	type of used window function
documentation	This element is not used by the diagnosis engine (at the moment) and therefore has only informational character. (e.g. for reports, ...)

element dd_EnvelopeSpectrum/AvgCount

restriction of xs:string

isRef	0
content	simple

enumeration	4
enumeration	16
enumeration	64
enumeration	Exp
enumeration	PeakHold

number of averages

'4, 16, 64' - averages
'Exp' - exponential averaging
'PeakHold' - Peak-Hold averaging

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

element dd_EnvelopeSpectrum/AvgMode

restriction of xs:string

isRef	0
content	simple

enumeration	off
enumeration	FreqDomain
enumeration	TimeDomain

average mode

'off' - averaging inactive
'FreqDomain' - averaging based on frequency domain
'TimeDomain' - averaging based on time domain

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

complexType dd_FrequencySpectrum

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

dd_Item/Spectrum

element dd_FrequencySpectrum/Values

isRef	0
content	simple

list of frequency spectrum lines

This string element contains a comma separated list of double values.
(e.g. 0.0041,0.0229,0.0444,...)
Each value represents the amplitude value of a single spectrum line.

There is no check if there are sufficient values available.
If you put in 4218 values then you will get out a 4218 lines spectrum!

element dd_FrequencySpectrum/Unit

restriction of xs:string

isRef	0
content	simple

enumeration	g
enumeration	m/s2
enumeration	m/s²
enumeration	mm/s
enumeration	ips
enumeration	µm
enumeration	mils
enumeration	xxx

frequency spectrum unit


If your spectrum is measured in another unit than those enclosed in the list,
please use entry 'xxx'.
At the moment this will be displayed as 'xxx' in all reports too, but in the next release we will change this to 'eu - engineering units'.

element dd_FrequencySpectrum/Detector

restriction of xs:string

isRef	0
content	simple

enumeration	rms
enumeration	pk
enumeration	pk-pk

signal detection of frequency spectrum

element dd_FrequencySpectrum/LowerEdge

restriction of xs:double

isRef	0
content	simple

enumeration	1
enumeration	2
enumeration	5
enumeration	10

lower filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'LowerFilterEdge'

element dd_FrequencySpectrum/UpperEdge

restriction of xs:double

isRef	0
content	simple

enumeration	20
enumeration	50
enumeration	100
enumeration	200
enumeration	500
enumeration	1000
enumeration	2000
enumeration	5000
enumeration	10000
enumeration	20000

upper filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'UpperFilterEdge'

element dd_FrequencySpectrum/Rotation

isRef	0
content	simple

documentation	speed information of triggered measurement
documentation	If there is no speed information available just store '0'.

element dd_FrequencySpectrum/RotUnit

restriction of xs:string

isRef	0
content	simple

enumeration	Hz
enumeration	upm
enumeration	cpm
enumeration	1/min

documentation	speed unit
documentation	If there is no speed information available just store 'Hz'.

element dd_FrequencySpectrum/WindowType

restriction of xs:string

isRef	0
content	simple

enumeration	Flat
enumeration	Hanning
enumeration	Uniform

documentation	type of used window function
documentation	This element is not used by the diagnosis engine (at the moment) and therefore has only informational character. (e.g. for reports, ...)

element dd_FrequencySpectrum/AvgCount

restriction of xs:string

isRef	0
content	simple

enumeration	4
enumeration	16
enumeration	64
enumeration	Exp
enumeration	PeakHold

number of averages

'4, 16, 64' - averages
'Exp' - exponential averaging
'PeakHold' - Peak-Hold averaging

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

element dd_FrequencySpectrum/AvgMode

restriction of xs:string

isRef	0
content	simple

enumeration	off
enumeration	FreqDomain
enumeration	TimeDomain

average mode

'off' - averaging inactive
'FreqDomain' - averaging based on frequency domain
'TimeDomain' - averaging based on time domain

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

complexType dd_Item

Name Rotation DiagConfiguration Item Overall BP BCU Spectrum SED BCS

diagnostician-xml-datasource/Item dd_Item/Item

unique identifier


Each element MUST have a unique identifier.
This identifier can have any format that is able to be stored in a string.
The only important thing is, that it is unique (at least inside your XML data file), better into your whole system.

defines hierarchy level of element


Enumeration Description:

»plantlist«
   The 'plantlist' element is able to hold a list of 'plant' items.
   Valid parent items:	has to be placed as root element
   Valid child items:	'plant'

»plant«
   The 'plant' element is able to hold a hierachy of levels and machines.
   Valid parent items:	'plantlist' or canbe placed directly as root element
   Valid child items:	'level' and 'machine'

»level«
   The 'level' element gives you the possibility to devide your hierarchy
   into additional levels.
   Valid parent items:	'plant' and 'level'
   Valid child items:	'level'  and 'machine'

»machine«
   The 'machine' element holds all diagnostic relevant data
   Valid parent items:	'plant', 'level' or directly as root element
   Valid child items:	'point'

»point«
   The 'point' element holds a list of measurements.
   Valid parent items:	'machine'
   Valid child items:	'measurement'

»measurement«
   The 'measurement' element contains none, one or more measurements.
   Each mesurement is a collection of several measurement tasks that are
   belonging together (e.g. due to the fact that they are all measured at
   (nearly) the same time.

   Each measurement item can contain the following measurements:
      - One Overall measurement
      - One Shockpulse measurement OR one Bearcon measurement
      - One Frequency spectrum
      - One Envelope spectrum OR one Bearcon Signature spectrum

   Valid parent items:	'point'
   Valid child items:	there are no further child elements available (at the moment)

ATTENTION:
   To keep things simple, neither parent/child relationsships
   nor measurement consistency will be checked by the XSD file!

date / time of measurement (stored in UTC)

hierarchy element
possible kinds:
- plantlist
- plant
- level
- machine
- point
- meas

element dd_Item/Name

isRef	0
content	simple

documentation	'Display name' of hierarchy element
documentation	Attention: If the item is of kind 'plantlist', the contens of 'Name' will always be displayed as 'Project' in the hierarchy tree of the Diagnostician.

element dd_Item/Rotation

isRef	0
content	simple

speed information in 'Hz'

This element holds the default speed information for items of kind 'machine' and 'point'.

The value is always stored in 'Hz'. Nevertheless the Diagnostician is able to show speed information in other units!

Explanation:
To do his job, the Diagnostician needs a valid speed information.
If there is a speed information inside the spectrum dataset, then this will be used.
If not, he tries to find a default speed information on point level.
If there is nothing defined, he tries to find a default speed information on machine level.
If no speed information is found, you will get an error message while trying to run a diagnosis.

element dd_Item/DiagConfiguration

dd_DiagnosisConfiguration

isRef	0
content	complex

MG MF DT DTBCU Rotation MarkerSet Limits

diagnostical parameters

element dd_Item/Item

isRef	0
content	complex

Name Rotation DiagConfiguration Item Overall BP BCU Spectrum SED BCS

unique identifier


Each element MUST have a unique identifier.
This identifier can have any format that is able to be stored in a string.
The only important thing is, that it is unique (at least inside your XML data file), better into your whole system.

defines hierarchy level of element


Enumeration Description:

»plantlist«
   The 'plantlist' element is able to hold a list of 'plant' items.
   Valid parent items:	has to be placed as root element
   Valid child items:	'plant'

»plant«
   The 'plant' element is able to hold a hierachy of levels and machines.
   Valid parent items:	'plantlist' or canbe placed directly as root element
   Valid child items:	'level' and 'machine'

»level«
   The 'level' element gives you the possibility to devide your hierarchy
   into additional levels.
   Valid parent items:	'plant' and 'level'
   Valid child items:	'level'  and 'machine'

»machine«
   The 'machine' element holds all diagnostic relevant data
   Valid parent items:	'plant', 'level' or directly as root element
   Valid child items:	'point'

»point«
   The 'point' element holds a list of measurements.
   Valid parent items:	'machine'
   Valid child items:	'measurement'

»measurement«
   The 'measurement' element contains none, one or more measurements.
   Each mesurement is a collection of several measurement tasks that are
   belonging together (e.g. due to the fact that they are all measured at
   (nearly) the same time.

   Each measurement item can contain the following measurements:
      - One Overall measurement
      - One Shockpulse measurement OR one Bearcon measurement
      - One Frequency spectrum
      - One Envelope spectrum OR one Bearcon Signature spectrum

   Valid parent items:	'point'
   Valid child items:	there are no further child elements available (at the moment)

ATTENTION:
   To keep things simple, neither parent/child relationsships
   nor measurement consistency will be checked by the XSD file!

date / time of measurement (stored in UTC)

next child element ...

element dd_Item/Overall

isRef	0
content	complex

Value Unit Detector StartFreq EndFreq

vibration measurement parameters

element dd_Item/BP

isRef	0
content	complex

Value Unit Detector StartFreq EndFreq

shock pulse measurement parameters

element dd_Item/BCU

isRef	0
content	complex

Value Unit Detector

bearcon measurement parameters

element dd_Item/Spectrum

dd_FrequencySpectrum

isRef	0
content	complex

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

frequency spectrum parameters

element dd_Item/SED

dd_EnvelopeSpectrum

isRef	0
content	complex

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

envelope spectrum parameters

element dd_Item/BCS

dd_BearconSignatureSpectrum

isRef	0
content	complex

Values Unit Detector LowerEdge UpperEdge Rotation RotUnit WindowType AvgCount AvgMode

bearcon signature spectrum parameters

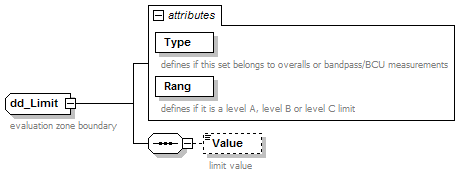

complexType dd_Limit

dd_LimitSet/Limit

documentation	defines if this set belongs to overalls or bandpass/BCU measurements
documentation	OV1: it's an overall measurement limit BCU: it's an bandpass/BCU measurement limit

defines if it is a level A, level B or level C limit


   0: limit value between Zone A and Zone B (Colorcode: dark-green)
   1: limit value between Zone B and Zone C (Colorcode: yellow)
   2: limit value between Zone C and Zone D (Colorcode: red)

documentation	evaluation zone boundary
documentation	The Diagnostician supports up to 3 evaluation zone boundaries for overall measurements and up to 3 evaluation zone boundaries for bandpass or BCU measurements.

element dd_Limit/Value

isRef	0
content	simple

limit value

this tag is not yet supported

At the moment the value is stored in the following syntax:
   <Limit Type="OVL" Rang="1">2.5</Limit>

From the next version on, the value will be stored into a separate 'value' tag
   <Limit Type="OVL" Rang="1">
	<Val>2.5</Val>
</Limit>

complexType dd_LimitSet

dd_DiagnosisConfiguration/Limits

The name of this element will be changed in the next release
to 'LimitSetType'

element dd_LimitSet/Limit

isRef	0
content	complex
mixed	true

documentation	defines if this set belongs to overalls or bandpass/BCU measurements
documentation	OV1: it's an overall measurement limit BCU: it's an bandpass/BCU measurement limit

defines if it is a level A, level B or level C limit


   0: limit value between Zone A and Zone B (Colorcode: dark-green)
   1: limit value between Zone B and Zone C (Colorcode: yellow)
   2: limit value between Zone C and Zone D (Colorcode: red)

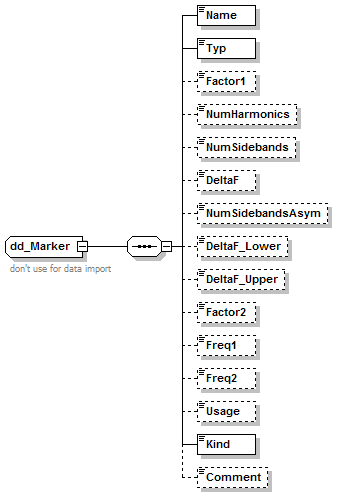

complexType dd_Marker

Name Typ Factor1 NumHarmonics NumSidebands DeltaF NumSidebandsAsym DeltaF_Lower DeltaF_Upper Factor2 Freq1 Freq2 Usage Kind Comment

dd_MarkerSet/Marker

don't use for data import

element dd_Marker/Name

isRef	0
content	simple

element dd_Marker/Typ

restriction of xs:string

isRef	0
content	simple

enumeration	absRange
enumeration	absValue
enumeration	relRange
enumeration	relValue

element dd_Marker/Factor1

isRef	0
content	simple

element dd_Marker/NumHarmonics

restriction of xs:integer

isRef	0
content	simple

minInclusive	0
maxInclusive	9

element dd_Marker/NumSidebands

restriction of xs:integer

isRef	0
content	simple

minInclusive	0
maxInclusive	9

element dd_Marker/DeltaF

isRef	0
content	simple

element dd_Marker/NumSidebandsAsym

restriction of xs:integer

isRef	0
content	simple

minInclusive	0
maxInclusive	9

element dd_Marker/DeltaF_Lower

isRef	0
content	simple

element dd_Marker/DeltaF_Upper

isRef	0
content	simple

element dd_Marker/Factor2

isRef	0
content	simple

element dd_Marker/Freq1

isRef	0
content	simple

element dd_Marker/Freq2

isRef	0
content	simple

element dd_Marker/Usage

restriction of xs:string

isRef	0
content	simple

enumeration	Envelope
enumeration	Frequency
enumeration	Frequency;Envelope

element dd_Marker/Kind

restriction of xs:string

isRef	0
content	simple

enumeration	Harmonic
enumeration	Sideband
enumeration	Sideband_Asym

element dd_Marker/Comment

isRef	0
content	simple

complexType dd_MarkerSet

dd_DiagnosisConfiguration/MarkerSet

Name	Type	Use	Default	Fixed	Annotation
type		required
Name	xs:string
Manufactor	xs:string

don't use for data import

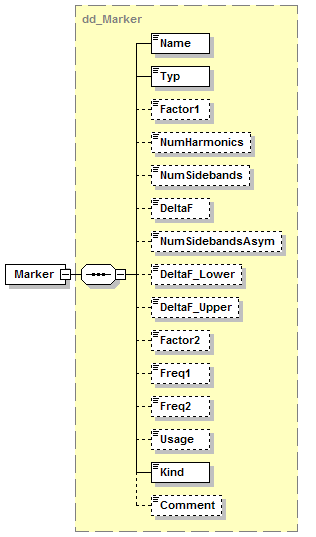

element dd_MarkerSet/Marker

isRef	0
content	complex

Name Typ Factor1 NumHarmonics NumSidebands DeltaF NumSidebandsAsym DeltaF_Lower DeltaF_Upper Factor2 Freq1 Freq2 Usage Kind Comment

complexType dd_Overall

Value Unit Detector StartFreq EndFreq

dd_Item/Overall

element dd_Overall/Value

isRef	0
content	simple

vibration measurement value

element dd_Overall/Unit

restriction of xs:string

isRef	0
content	simple

enumeration	g
enumeration	m/s2
enumeration	m/s²
enumeration	mm/s
enumeration	ips
enumeration	µm
enumeration	mils
enumeration	xxx

vibration measurement unit


If your overall value is measured in another unit than those enclosed in the list,
please use entry 'xxx'.
At the moment this will be displayed as 'xxx' in all reports too, but in the next release we will change this to 'eu - engineering units'.

element dd_Overall/Detector

restriction of xs:string

isRef	0
content	simple

enumeration	rms
enumeration	pk
enumeration	pk-pk
enumeration	pc
enumeration	ppc

signal detection of vibration measurement

element dd_Overall/StartFreq

restriction of xs:double

isRef	0
content	simple

enumeration	1
enumeration	3
enumeration	10
enumeration	12.5
enumeration	16
enumeration	20
enumeration	25
enumeration	31.5
enumeration	40
enumeration	50
enumeration	63
enumeration	80
enumeration	100
enumeration	125
enumeration	160
enumeration	200
enumeration	250
enumeration	315
enumeration	400
enumeration	500
enumeration	630
enumeration	800
enumeration	1000
enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000

lower filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'LowerFilterEdge'

element dd_Overall/EndFreq

restriction of xs:double

isRef	0
content	simple

enumeration	10
enumeration	12.5
enumeration	16
enumeration	20
enumeration	25
enumeration	31.5
enumeration	40
enumeration	50
enumeration	63
enumeration	80
enumeration	100
enumeration	125
enumeration	160
enumeration	200
enumeration	250
enumeration	315
enumeration	400
enumeration	500
enumeration	630
enumeration	800
enumeration	1000
enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000
enumeration	12500
enumeration	16000
enumeration	20000

upper filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'UpperFilterEdge'

complexType dd_ShockPulse

Value Unit Detector StartFreq EndFreq

element dd_ShockPulse/Value

isRef	0
content	simple

shock pulse measurement value

element dd_ShockPulse/Unit

restriction of xs:string

isRef	0
content	simple

enumeration	g
enumeration	m/s2
enumeration	m/s²

shock pulse measurement unit

element dd_ShockPulse/Detector

restriction of xs:string

isRef	0
content	simple

signal detection of shock pulse mesurement

element dd_ShockPulse/StartFreq

restriction of xs:double

isRef	0
content	simple

enumeration	630
enumeration	800
enumeration	1000
enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000
enumeration	12500
enumeration	16000

lower filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'LowerFilterEdge'

element dd_ShockPulse/EndFreq

restriction of xs:double

isRef	0
content	simple

enumeration	800
enumeration	1000
enumeration	1250
enumeration	1600
enumeration	2000
enumeration	2500
enumeration	3150
enumeration	4000
enumeration	5000
enumeration	6300
enumeration	8000
enumeration	10000
enumeration	12500
enumeration	16000
enumeration	20000

upper filter edge frequency in 'Hz'

This element is not used by the diagnosis engine (at the moment)
and therefore has only informational character. (e.g. for reports, ...)

The name of this element will be changed in the next release
to 'UpperFilterEdge'
